PM123 Playable object handling - Classes

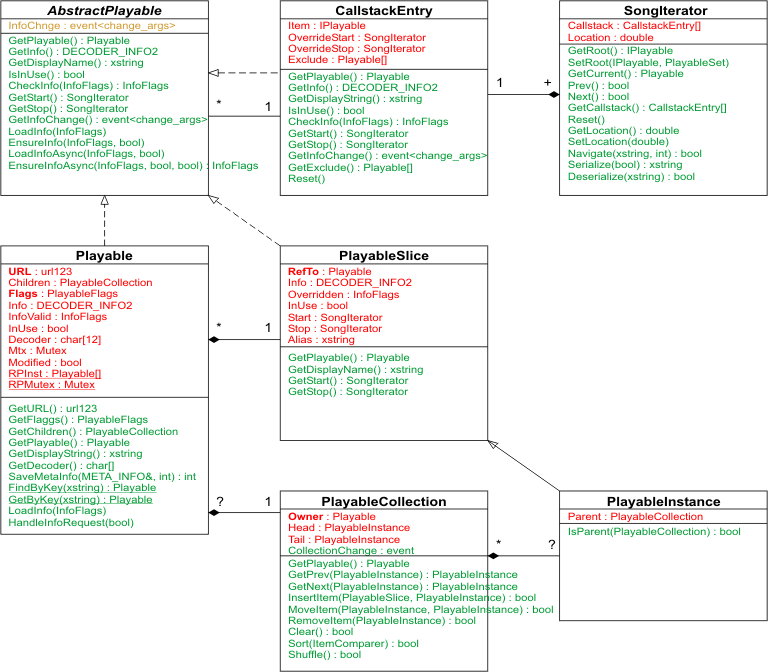

Class Tree

class APlayable

This abstract base class is used as least common denominator of all objects that can be played with PM123 in any way.

The concept behind all of these objects is that they provide different kinds of information (see InfoFlags) and all of these information is to be requested before it is used. Failing to do so will cause undefined results like initial structures or outdated content, but it will not cause undefined behavior like an application crash.

Services

• The only service that is directly provided by this class is the asynchronous request service.
• For efficiency reasons the InfoChange event is included as class member. It is required by any deriving class anyway.

Properties

• The objects are reference countable, i.e. they implement Iref_count. This belongs to all derived classes. You must not use any of this classes without holding a strong reference to it with an int_ptr<> instance. However, this does not imply that all access have been done through int_ptr<>. E.g. in case of a function argument it is guaranteed that the callee has a strong reference too, as long as you do not keep the reference after the function returns.
• The objects are non-copyable. This may be overridden in derived classes by taking the appropriate actions.

class Playable

A Playable object is the 1:1 representation of a URL in PM123. At most one Playable instance may exist for each URL. This is ensured by a private constructor and an instance repository. Use GetByUrl to access or create instances of Playable.

If a playable object is enumerable (e.g. a playlist) it has an additional extension object called PlaylistData. You cannot access this data directly. It is only used internally to keep the memory footprint of non-playlist objects small.

Services

• The object repository,
• the interface to the plug-ins,
• the object state and
• the tracking of property changes.

Properties

• Playable objects are unique in the way that for each (equivalent) URL only one object exists. This causes all related information to be consistent in the whole application.

class PlayableSlice

A PlayableSlice is a reference to an APlayable object which only addresses a slice of the referenced object. It overrides the ITEM_INFO containing an optional alias name optional start and a stop locations and the aggregate properties that depend on this values.

The locations are originally stored as PM123 location strings. This causes a delayed verification of their values and allows to set them while the referenced content is not yet available.

PlayableSlice objects may be nested. In this case the outer PlayableSlice represents the intersection of the two slices.

Services

• Methods to read the start and stop location.
• Validation of the start and stop position and
• calculation of the recursive playlist information based on the slice.
• The PlayableSlice has an in-use flag that implies that the underlying playable is in use but not the other way around.

Properties

• In contrast to Playable a PlayableSlice is non-unique and
• it is copyable. But note that copying does not affect the InfoChange event consumers.

class PlayableRef

This is a refinement of PlayableSlice that allows to override attribute and meta information too.

Services

• Methods to override properties.
• Notification logic that takes care of the overridden information.

class PlayableInstance

A PlayableInstance is playlist item, no more, no less. It is mainly the same than PlayableRef, but it keep track of the location in the playlist. A PlayableInstance belongs to exactly one Playable of playlist type or it is orphaned, i.e. removed from the playlist but still alive because of strong references. This causes defined behavior when removing a currently playing object from a playlist. Orphaned items never can be reattached to a playlist.

Services

• Keep track of the index within the surrounding collection.

Properties

• It is non-copyable.
• It weakly depends on a Playable (playlist). You cannot get a strong reference to the enclosing collection from that.
• A PlayableInstance may only be created by a Playable, but it may be removed from the collection and stay alive as long as there are active referenced to it.

class Location

A Location is a pointer to a particular position within any playable object. It may point to a time offset within a song as well as to a deep location inside a nested playlist structure and keep track of the navigation path.

Services

• A Location provides methods to navigate in various ways.
• A Location can be (de)serialized from/to a string.
• It provides methods to calculate partial aggregate information of its root that covers either the part before the location or the part after the location.


Properties

• A Location always belongs to some Playable as root object.
• It keeps only a weak reference to its root. This reference is unchecked, so a location must not exceed the lifetime of its root.
• Locations that belong to the same root are comparable.


class SongIterator

A SongIterator is a refinement of a Location that provides additional Methods to keep track of the flattened playlist offsets.

Services

• Calculate the offsets (songs and time) within the current root.


class CallstackEntry

This is only used by SongIterator instances to keep track of the current call stack.

Services

• Provide offset information within the current item.

Properties

• It is non-copyable.
